铁路车厢用的电力电子设备

铁路车厢用的电力电子设备在铁路车厢中,除主电动机的驱动之外,还使用了辅助电源装置、空调装置、门开关装置等大量的电力电子设备。以下介绍的是富士电机最适用于车厢电力电子设备的功率半导体产品。主电源转换器的电路示例主电动机驱动的电路结构示例。电压分交流电压和直流电压。在交流电压的情况下,在经过变压器后利用PWM转换器转换为直流电压,然后利用VVVF变频器驱动主电动机。交流型电车用主电源转换器示例直流型电

铁路车厢用的电力电子设备

在铁路车厢中,除主电动机的驱动之外,还使用了辅助电源装置、空调装置、门开关装置等大量的电力电子设备。以下介绍的是富士电机最适用于车厢电力电子设备的功率半导体产品

铁路
铁路

主电源转换器的电路示例

主电动机驱动的电路结构示例。电压分交流电压和直流电压。在交流电压的情况下,在经过变压器后利用PWM转换器转换为直流电压,然后利用VVVF变频器驱动主电动机。

交流型电车用主电源转换器示例

交流型电车用主电源转换器示例

直流型电车用主电源转换器示例

直流型电车用主电源转换器示例

馈电电压示例

类别城市铁路城际铁路
地区地铁、LRV电车高速车厢
欧洲DC600V/DC750V/DC825V/DC1500VDC1500V/DC3000V/AC15kV/AC25kVAC25kV

西欧DC600V/DC750V/DC1500VDC1500V/DC3000V/AC15kV/AC25kVAC15kV/AC25kV
东欧DC600V/DC750VDC1500V/DC3000V/AC25kV
CISDC600V/DC750V/DC825VDC1500V/DC3000V/AC25kVAC25kV
北美DC600V/DC750VAC25kV
中南美DC600V/DC750V/DC1500V/DC3000VDC3000V-
亚洲、太平洋DC600V/DC750V/DC1500VDC1500V/AC20kV/AC25kVAC25kV
中东、非洲DC750V/DC1500VDC3000V/AC25kV-
GlobalDC750V/DC1500VDC1500V/AC25kVAC25kV

辅助电源装置的电路示例

交流型电车的辅助电源装置示例

交流型电车的辅助电源装置示例

直流型电车的辅助电源装置示例

直流型电车的辅助电源装置示例
类别城市铁路城际铁路
规格地铁、LRV地铁电车高速车厢
规格亚洲规格
(中国、东南亚)
北美规格
(NYCT)
亚洲规格
(澳洲、日本)
全球规格

输入电压DC750VDC600VDC1500VAC440V
(主变压器3次)
输出电压AC440V,3φ,60HzAC120V,1φ,60Hz×15kVAAC440V,3φ,60HzAC440V,3φ,60Hz


DC37.5V x 20kW

容量90kVA/160kVA40kVA180kVA/260kVA180kVA/210kVA
冷却方式自冷强制风冷自冷强制风冷
效率95%以上95%以上95%以上95%以上
噪音62dB(A)70dB(A)62dB(A)68dB(A)
小型化≧ 80 kVA/m3≧ 100 kVA/m3≧ 120 kVA/m3≧ 120 kVA/m3

富士电机的功率半导体产品

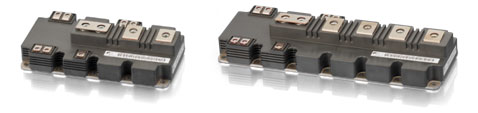

HPM (High Power Modules)

HPM (High Power Modules)

AlSiC Baseplate (High reliability type)

1-pack


1700V3300V
800A
1MBI800UG-330
1000A
1MBI1000UG-330
1200A1MBI1200VR-170E1MBI1200UE-330
1500A
1MBI1500UE-330
1600A1MBI1600VR-170E
2400A1MBI2400VR-170E
1MBI2400VS-170E

3600A1MBI3600VS-170E

2-pack


1700V
600A2MBI600VT-170E
800A2MBI800VT-170E
1200A2MBI1200VT-170E

Copper Baseplate (Standard type)

1-pack


1200V1700V
1200A1MBI1200VC-120P1MBI1200VC-170E
1600A1MBI1600VC-120P1MBI1600VC-170E
2400A1MBI2400VC-120P
1MBI2400VD-120P
1MBI2400VC-170E
1MBI2400VD-170E
3600A1MBI3600VD-120P1MBI3600VD-170E

2-pack


1200V1700V
600A2MBI600VG-120P2MBI600VG-170E
800A2MBI800VG-120P2MBI800VG-170E
1200A2MBI1200VG-120P2MBI1200VG-170E

PrimePACK™

PrimePACK™

注: ‌PrimePACK™为Infineon Technologies公司的注册商标

2-Pack VCES = 1200V


V seriesX series
600A2MBI600VXA-120E-50
2MBI600VXA-120E-54

900A2MBI900VXA-120E-50
2MBI900VXA-120E-54
2MBI900VXA-120P-50
2MBI900VXA-120P-54
2MBI900XXA120P-50
1200A
2MBI1200XXE120P-50
1400A2MBI1400VXB-120E-50
2MBI1400VXB-120E-54
2MBI1400VXB-120P-50
2MBI1400VXB-120P-54
2MBI1400XXB120P-50
1800A
2MBI1800XXF120P-50
2400A
2MBI2400XRXG120-50

2-Pack VCES = 1700V


V seriesX series
650A2MBI650VXA-170E-50
2MBI650VXA-170E-54
2MBI650VXA-170EA-50
2MBI650VXA-170EA-54
2MBI650XXA170-50
1000A2MBI1000VXB-170E-50
2MBI1000VXB-170E-54
2MBI1000VXB-170EA-50
2MBI1000VXB-170EA-54
2MBI1000XXB170-50
1200A
2MBI1200XXE170-50
1400A2MBI1400VXB-170E-50
2MBI1400VXB-170E-54
2MBI1400VXB-170P-50
2MBI1400VXB-170P-54
2MBI1400XXB170-50
1800A
2MBI1800XXF170-50
2MBI1800XXG170-50

Chopper

Step Up Chopper


1200V1700V
650A
1MBI650VXA-170EL-50
1MBI650VXA-170EL-54
900A1MBI900VXA-120PD-50
1MBI900VXA-120PD-54

1000A
1MBI1000VXB-170EL-50
1MBI1000VXB-170EL-54
1400A1MBI1400VXB-120PL-541MBI1400VXB-170EL-50
1MBI1400VXB-170EL-54

Step Down Chopper


1200V1700V
650A
1MBI650VXA-170EH-50
1MBI650VXA-170EH-54
900A1MBI900VXA-120PC-50
1MBI900VXA-120PC-54

1000A
1MBI1000VXB-170EH-50
1MBI1000VXB-170EH-54
1400A1MBI1400VXB-120PH-541MBI1400VXB-170PH-50
1MBI1400VXB-170PH-54

IGBT 1-Pack


1200V1700V
Aluminium oxide DCBAluminium nitride DCBAluminium oxide DCB
300A

1MBI300V-170-50
400A1MBI400V-120-501MBI400VF-120-501MBI400V-170-50
600A1MBI600V-120-501MBI600VF-120-501MBI600V-170-50
900A1MBI900V-120-50

IGBT 2-Pack

Standard 2in1 VCES = 1200V


V seriesX series
75A2MBI75VA-120-50
100A2MBI100VA-120-502MBI100XAA120-50
150A2MBI150VA-120-50
2MBI150VB-120-50
2MBI150XAA120-50
200A2MBI200VB-120-50
2MBI200VH-120-50
2MBI200XAA120-50
2MBI200XBE120-50
300A2MBI300VD-120-50
2MBI300VH-120-50
2MBI300VE-120-50
2MBI300XBE120-50
2MBI300XHA120-50
400A2MBI400VD-120-502MBI400XDE120-50
450A2MBI450VH-120-50
2MBI450VE-120-50
2MBI450XHA120-50
2MBI450XEE120-50
600A2MBI600VE-120-502MBI600XEE120-50

Standard 2in1 VCES = 1700V


V seriesX series
75A2MBI75VA-170-502MBI75XAA170-50
100A2MBI100VA-170-502MBI100XAA170-50
150A2MBI150VH-170-502MBI150XAA170-50
2MBI150XHA170-50
200A2MBI200VH-170-502MBI200XHA170-50
300A2MBI300VH-170-50
2MBI300VE-170-50
2MBI300XHA170-50
2MBI300XEE170-50
400A2MBI400VE-170-502MBI400XHA170-50
2MBI400XEE170-50

Dual XT VCES = 1200V


V seriesV series With
SiN-substrate
X series
225A2MBI225VN-120-50
2MBI225VX-120-50
2MBI225VN-120S-502MBI225XNA120-50
2MBI225XNB120-50
300A2MBI300VN-120-50
2MBI300VX-120-50
2MBI300VN-120S-502MBI300XNA120-50
2MBI300XNB120-50
450A2MBI450VN-120-50
2MBI450VX-120-50
2MBI450VN-120S-502MBI450XNA120-50
2MBI450XNB120-50
600A
2MBI600VN-120-50
2MBI600VX-120-50
2MBI600XNG120-50
2MBI600XNE120-50
2MBI600XNH120-50
2MBI600XNF120-50
800A

2MBI800XNE120-50
2MBI800XNF120-50
1000A

2MBI1000XRNE120-50
2MBI1000XRNF120-50

Dual XT VCES = 1700V


V seriesV series With
SiN-substrate
X series
225A2MBI225VX-170-50
2MBI225XNA170-50
2MBI225XNB170-50
300A2MBI300VN-170-50
2MBI300VX-170-50

2MBI300XNA170-50
2MBI300XNB170-50
450A2MBI450VN-170-50
2MBI450VX-170-50

2MBI450XNA170-50
2MBI450XNB170-50
550A
2MBI550VN-170-50
2MBI550VX-170-50

600A

2MBI600XNG170-50
2MBI600XNE170-50
2MBI600XNH170-50
2MBI600XNF170-50

HPnC


1700V3300V
450A
2MBI450XVF330-50
1000A2MBI1000XVF170-50
1200A2MBI1200XVF170-50

Chopper

Chopper VCES = 1200V


U seriesV series
50A1MBI50U4F-120L-50
75A1MBI75U4F-120L-50
100A1MBI100U4F-120L-50
150A
1MBI150VA-120L-50
200A1MBI200U4H-120L-501MBI200VA-120L-50

High Speed IGBT Modules


1200V
200A1MBI200HH-120L-50
300A1MBI300HH-120L-50
400A1MBI400HH-120L-50
